Specification

Application:

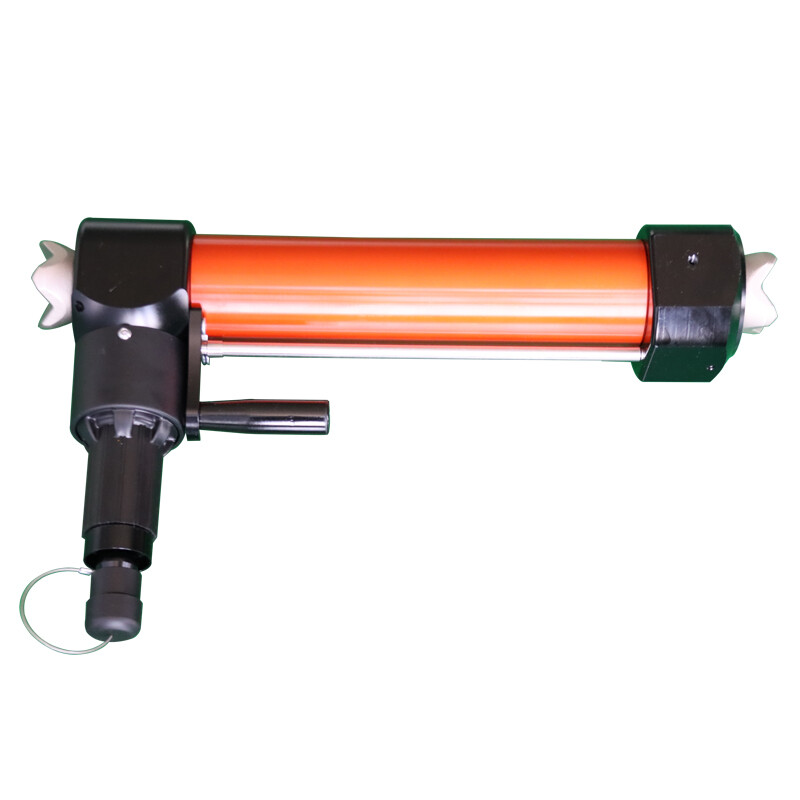

The hydraulic ram is used in combination with a hydraulic powered pump or a hydraulic manual pump, which has the functions of lifting objects, keeping objects stable and moving obstacles.

Feature:

1.The top and bottom are non-slip design for use on slopes or slippery occasions;

2.Fast jacking speed and high rescue efficiency;

3.The head of the ram is equipped with a rotatable cross head, which can realize convenient positioning and perfect fixing in various situations;



Technical Parameter:

Model

GYCD72-100/975

72-145/755

Working Pressure

72Mpa(720Bar)

72Mpa(720Bar)

Max Lifting Force

100.61KN

145KN

Close Length

570mm

450mm

Lifting Stroke

405mm

305mm

Supporting Scope

570-975mm

450-755mm

Weight

9.8Kg

9.9Kg

Dim(L*W*H)

575*330*90mm

450*335*90mm

Applicable Temperature

-30-55

-30-55
