Specification

Technical Parameter:

Model

GYJK72-33(20)370M

Work Pressure

72Mpa(720Bar)

Max Cutting Force

520KN

Rated Spreading Force

44.32KN

Cutting Capacity

Φ35mm(Q235 round bar)   20mm steel plate

Spreading Distance

350mm

Hauling Distance

250mm

Weight

13.6Kg

Dim(L*W*H)

830*265*210mm

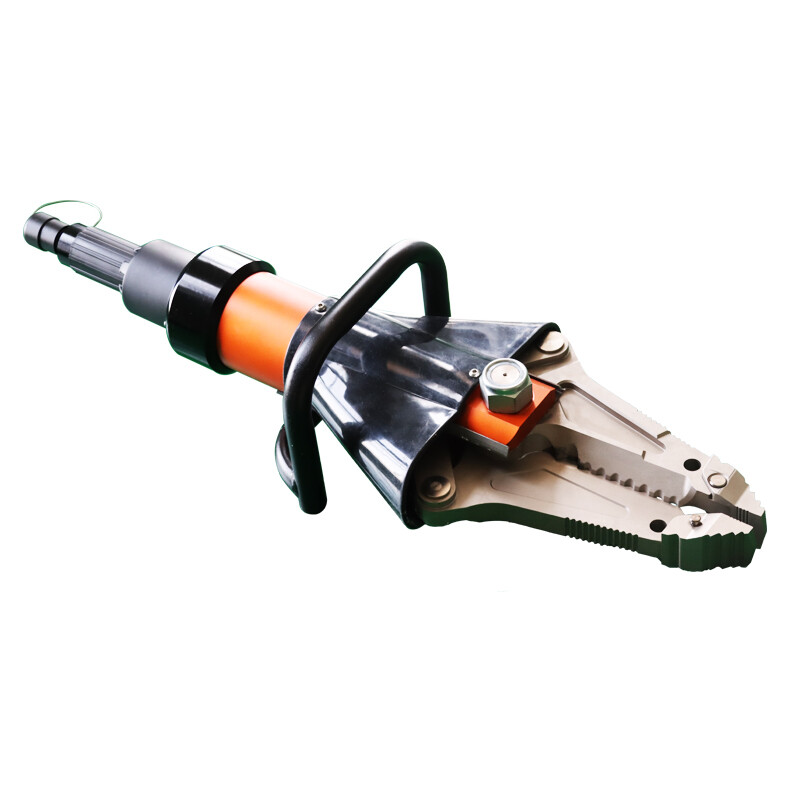

1. The hydraulic combi tool has the functions of cutting, spreading, and pulling at the same time;

2.It can disassemble the whole vehicle and cut off vehicle components, metal structural pipes, special-shaped steel and steel plates;

3.The detachable working head can be quickly replaced, making it convenient to install other functional working head.
