Specification

Feature:

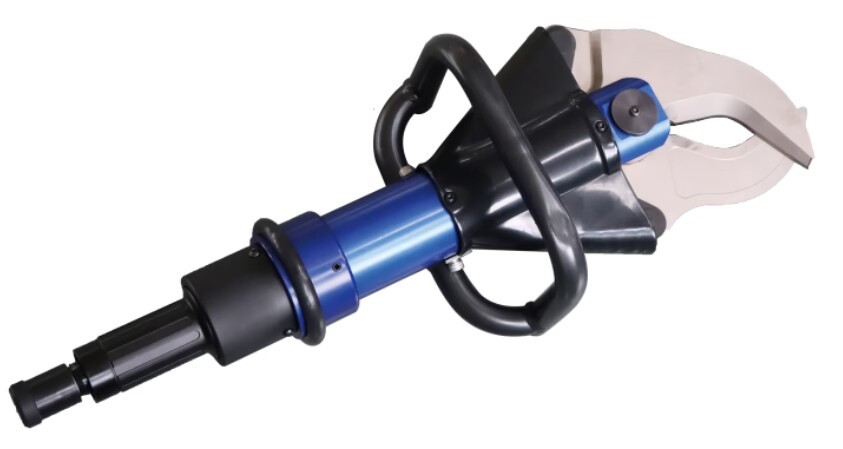

1.The hydraulic cutter is used in combination with a hydraulic powered unit or a hydraulic manual pump.

1. The blade is a 30 ° offset blade, which is more practical in vehicle rescue.

2. The tool adopts core technology, which can be quickly connected and plugged in and out under pressure, making operation safer and more easy.

3. The integrated design of the handle and switch greatly facilitates the operation of rescue personnel;

4. The newly designed bolt embedded structure makes it easier to use in narrow spaces .

Model

GYJQ72-33(20)/180

Working Pressure

72Mpa(720Bar)

Max distance at the tips

180mm

Max Cutting Capacity

Φ33mm(Q235 round bar)

Cutting force

380KN

Weight

13.2Kg

Dim(L*W*H)

830*270*210mm
